Thanks to Cameron Kaiser’s excellent blog Old Vintage Computing Research, I have a growing interest in the Apple Network Server line of computers. One of Kaiser’s posts mentions the ANS 300, a model I wasn’t familiar with at the time.

Turns out, it is wild. Tom Owad wrote about it back in 2004:

The Apple Network Servers are high end servers built by Apple that run IBM’s AIX variant of UNIX. Pictured above is the Apple Network Server 700, Apple’s top-of-the-line server with a 180 MHz PPC 604e processor, two power supplies, 7 removable drive bays and 2 fixed drives. The ANS 500 had a slightly lesser configuration, with a 132 MHz 604e, only one power supply, and 7 removable drive bays. Both have locking wheels on the bottom (handy since the unit weighs about 80 pounds!) and a locking/sliding 3-position translucent door to cover the drive bays. The power supplies are removable via a handle behind the purple removable “grille” in the bottom. These units were specifically designed to be highly serviceable yet very secure.

The ANS 300 had the same architecture as the 500 & 700, but was an easily rack-mounted unit intended for Internet/FTP/Mail/Web serving, departmental and small database servers, etc, and consequently had less expansion. It has two removable drive bays and one fixed drive (behind the LCD). Much of the serviceability & security was abandoned for the sake of size. For instance, there is no obvious way to secure the drive bays, or the motherboard tray from being removed. The power supply is fixed and would be slow to field repair. The fixed hard drive mounted behind the LCD is very hard to reach, etc. The key lock on the front controls only the “on, lock, service” options, unlike the multiple key lock controlling those functions plus doors and security on the full size 500/700 units. These issues ceased to be important, however, as the ANS 300 never shipped.

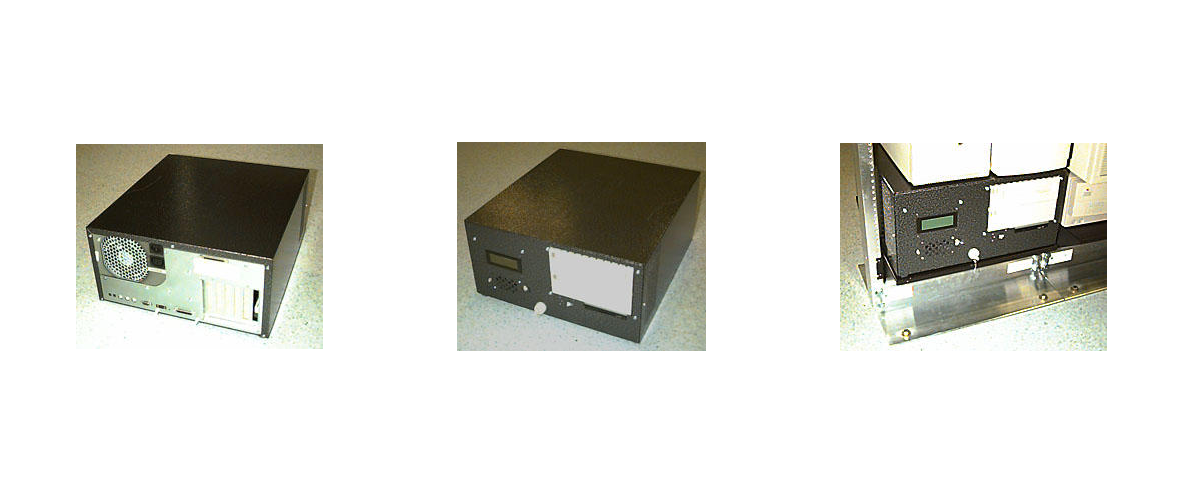

Here are some images of the machine in all of its glory:

ANS 300

Owad continues:

Code named Deep Dish, the ANS 300 is essentially an Apple Network Server without the large drive array. As a consequence, the computer is only four rack-units high. The logic board is in the bottom of the unit on a slide-out tray. There are two standard ANS removable trays on the right side of the unit’s front. The Deep Dish also has one fixed internal drive, and the floppy drive is fixed, as well. Apple also had plans to produce an external drive array for the machine, which is why there is an ultrawide SCSI port above the PCI slots.
